Delta Logger DL2 LoRa SDI12

Delta Logger DL2 LoRa SDI12

LoRa / SDI 12 Logger

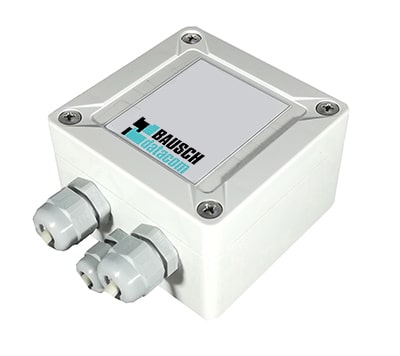

The Delta LoRa Logger is a logging device with 2 analog inputs, one SDI12 and one counter interface. The device is battery powered and functions as a stand-alone data logger, collecting data from its sensors and transmitting the data through LTE Cat M1/Cat NB1, EGPRS, GPRS, LoRaWan or Sigfox at programmable intervals. It can also be configured as Gateway collecting data from remote sensors using LoRa modulation.


  • Features:
    Measurement logger/Gateway
    LTE Cat.1 /GPRS
    LoRa modulated / Sigfox
    Battery powered
    2 analog inputs / SDI12
    Nano card holder or eSIM
  • Applications:
    Measurement logging & transmitting
    Pulse Counting


  • Basic variants of the Delta Logger:
    Delta_MU_BG96: LTE Cat M1/Cat NB1/EGPRS/LoRa/Sigfox (Available April 2019)
    Delta_MU_M95: GPRS/LoRa/Sigfox (Roadmap)
    Delta_MU_XX: LoRa/Sigfox (Roadmap)
    Delta_XX_BG96: LTE Cat.M1/Cat.NB1/EGPRS (Roadmap)
    Delta_XX_M95: GPRS (Roadmap)
  • housing: IP66-67
  • Dimensions/ 72X72 mm with cutouts and holes to fit Spelberg TG PC 88-6-0
  • Power Supply:
    3.3 – 3.6 Vdc battery
    Onboard Supercapacitor
  • Environmental:
    Operating Temperature: -10°C + 50°C
  • Interfaces & Connectors:
    2x Analog interface: 16 bit ADC/Input range:-0,2 .. 5Vdc/Input Impedance > 2,5 mOhm
    SDI 12 sensor interface: Max. 4 devices - 20 readings per device
    Micro USB 2 port for configuration and programming
    SMA antenna connector
    eSIM or traditional nano card
  • Communication:
    LTE Cat.M1/Cat.NB1/EGPRS
    Quad band GPRS
    LoRa modulation
  • Processor:
    Low power microcontroller sleep mode: < 11uA
    Dual bank Program flash for firmware upgrades 256KX2
    8Mbyte Data Flash
    Real Time Clock 3ppm
    Remote configurable and programmable
  • Battery Connector:
    Pin1: GND
    Pin2: + 3V6
  • Interface Connector:
    Pin1: A1 Analog input 1 range: -0,1 to 5Vdc
    Pin2: A2 Analog input 2 range: -0,1 to 5Vdc
    Pin3: GND GND
    Pin4: PUL Pulse Input low active
    Pin5: GND GND
    Pin6: DAT SDI12 data line
    Pin7: S12 12Vdc controlled output 50mA max.
    Pin8: S3 3,6Vdc controlled output 50mA max.
  • Expansion Connector:
    2 X 5 PIN 0,254mm header
  • Certifcation CE
