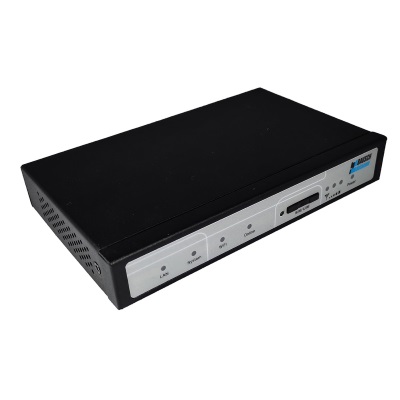

The DinBox 3G Router is a WCDMA/HSDPA/HSUPA/HSPA+ router providing secured VPN data communication functionality. Please check a typical substation application.

The router can be used in M2M applications, including intelligent transport, industrial automation, telemetry, POS, but also as communication device for SCADA applications. The product supports VPN client and server (IPsec) and also local and remote firmware upgrades, along with import and export of configuration files. Other features are e.g. an embedded RTC, NTP and even a multiple DDNS provider. The DinBox 3G Router is a WCDMA/HSDPA/HSUPA/HSPA+ router / cellular terminal device providing data communication functionality through a public WCDMA/HSDPA/HSUPA/HSPA+ network.
The router has an embedded high-powered industrial 32-bits CPU and a real time operating system and both a RS232 or RS485/RS422 serial communication port and Ethernet port, allowing the transparent connection of existing serial and Ethernet devices to a cellular network.

Fig.1: Typical setup for a SCADA secured connection to an electricity cabinet.

Contents of the package
DinBox 3G Router
Cellular antenna(s) (Male SMA)
Network cable
Console cable
Power adapter
DC Cable (12V power cable)
DINrail brace
Cellular Specifications

Industrial cellular module
Standards and frequency bands: UMTS / WCDMA / HSDPA / HSUPA /
HSPA+ in 850/1900/2100MHz, 850/900/1900/2100MHz (optional),
Bandwidth: HSUPA:5.76Mbps (upload speed) / HSDPA:7.2Mbps
(download speed) / UMTS:384Kbps (DL/UL) / HSPA+: 21Mbps
(download speed)
TX power: <24dBm
RX sensitivity: <109dBm
Hardware System
CPU Industrial 32bits CPU
FLASH 8MB (extendable to 64MB)
Interface type
Ethernet: 1x 10/100 Mbps Ethernet port (RJ45), auto MDI/MDIX, 1.5KV
magnetic isolation protection
Serial: 1x RS232 (or RS485/RS422) port, 15KV ESD protection
Data bits 5, 6 ,7, 8
Stop bits 1, 1.5 (optional), 2
Parity none, even, odd, (space, mark) (optional)
Baud rate 2400 ~ 115200 bps
Indicator: "Power", "System", "Online", "Link/ACT", "Alarm", “Signal
Antenna: Standard SMA female interface, 50 ohm
SIM/UIM: Standard 3V / 1.8V user card interface, 15KV ESD protection
Power: Standard 3-PIN power jack, reverse-voltage and overvoltage
Reset: Restores the router to its original factory default settings
Power supply
Standard Power DC 12V/1.5A
Power range DC 5~35V
Consumption <450mA (12V)
Physical characteristics
Housing Iron, IP30 protected
DINrail brace
Dimensions 157x97x25 mm
Weight 440g
Operating Temperature -35~+75ºC
Storage Temperature -40~+85ºC
Operating Humidity 95% (unfreezing)
Routing and Security
VPN client (PPTP, L2TP, OpenVPN, IPSEC and GRE
(only for VPN version)
VPN server (PPTP, L2TP, OpenVPN, IPSEC and
GRE (only for VPN version)
Local and remote firmware upgrade, import and
export configuration file
NTP, embedded RTC
Multiple DDNS provider service
MAC Address clone, PPPoE Server included
Support multi online trigger ways, including SMS,
ring and data. Support link disconnection when timeout.
Support APN/VPDN
Support DHCP server and client, firewall, NAT, DMZ
host, URL block, QoS, speed statistics etc.
Full protocol support such as TCP/IP, UDP
Schedule Reboot, schedule Online and Off line ...
