19 " racks for PSTN & GSM: proven technology still up to date!

19
Bausch Datacom continues offering 19" modem rack systems based on the PSTN Proxima and GSM Indubox modem technology. High performance and reliability are the key features of this modem technology.

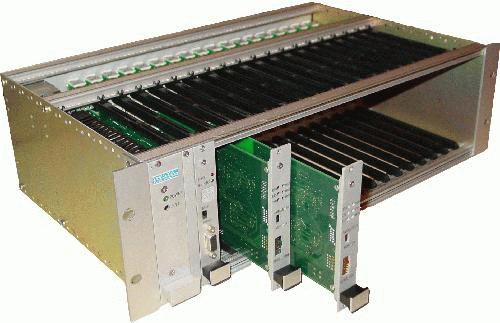

The development of PSTN & GSM rackmodems continues to be integrated in the Bausch Datacom portfolio. Often, a managed 19" rack for dial-out applications is still used all over the world. However, because many leading manufacturers are more and more stepping away of the circuit switched technologies, products are more and more difficult to find. Bausch Datacom is trying to fill this gap. The Proxima rackmodems are integrated in a 19 inch rack for maximal 16 x Proxima PSTN or 10  x GSM Rack modemcards including power-supply  & modem management system through a Digi terminal Server. This allows TCP/IP and SNMP communication and management. An antenna combiner collects the rackcards to a single antenna for transmission. A spare power supply is available. For project purposes, customers can buy a sample rack at project price to evaluate the application.

The Proxima rackmodems are integrated in a 19 inch rack for maximal 16 x Proxima PSTN or 10 X GSM Rack Modem Cards including power-supply card & modem management system through a Digi terminal Server. This allows TCP/IP and SNMP communication and management.

Bausch Datacom modemtechnology
The rackmodem cards are based on the Bausch Datacom modemtechnology using for PSTN Conexant chipsets and for GSM Sierra Wireless. As we use our own technology in the racks Bausch Datacom is able to offer special features such as leased line (PSTN) and others.

The rackmodem cards are based on the Bausch Datacom modemtechnology using for PSTN Conexant chipsets and for GSM Sierra Wireless. As we use our own technology in the racks Bausch Datacom is able to offer special features such as leased line (PSTN) and others.

Proxima GSM 19" rack

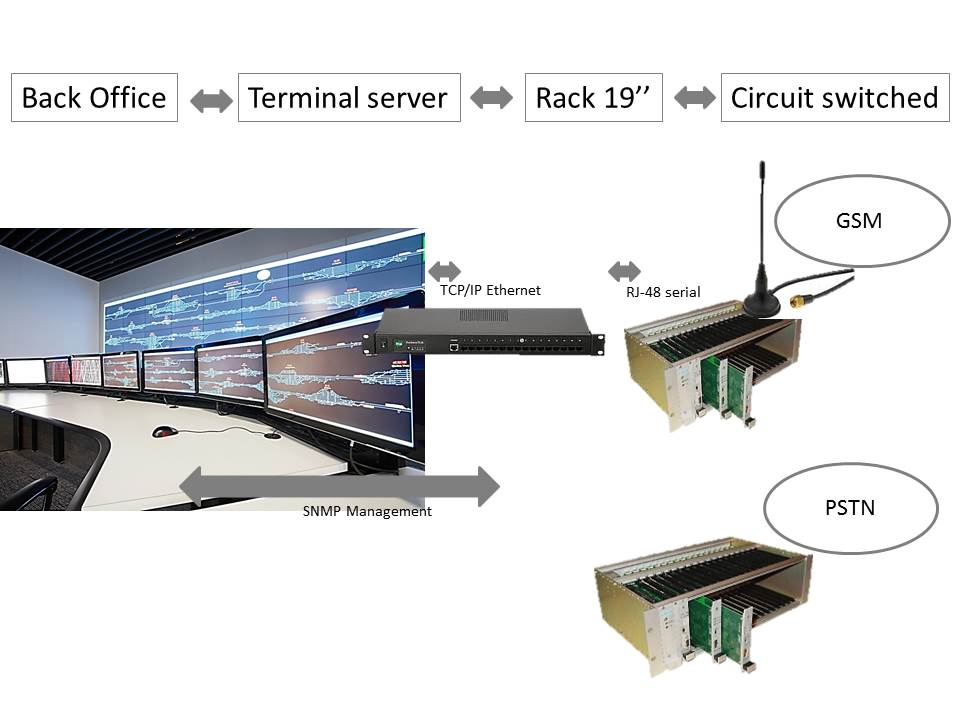

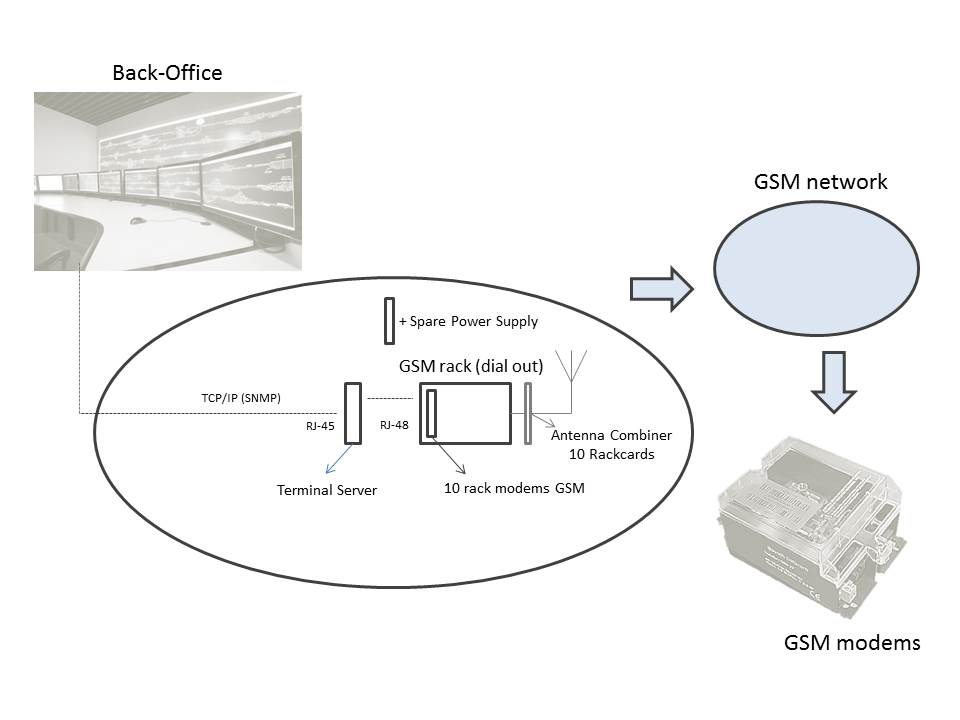

Recently Bausch Datacom relaunched the Proxima GSM 19" rack, a GSM version of the PSTN rack. A typical set up and application is the following: A terminal server solution (Bausch Datacom suggests Digi) offers a TCP/IP connection and SNMP managmement to the 19''Rack with maximal 10 GSM Proxima rackcards based on Sierra Wireless GSM modules. The rack is powered by an internal Power supply, a spare Power Supply is available and the 10 rackcards end on a SMA (female) connector. An antenna combiner collects the GSM modules to one GSM Antenna. This simple solution allows the customer to manage from it's (TCP/IP) network a circuit switched racksolution for dial-out applications.

  • 19" rack
  • Max. 10 GSM modems
  • Max. 10 GSM modems to one Antenna collector
  • Power supply: Mean Well: RS-50-5
  • Each modem can be selected through the terminal port
  • Serial modem speeds supported up to 115200 baud
  • Remote change of the configuration of the modem units through Digi Portserver

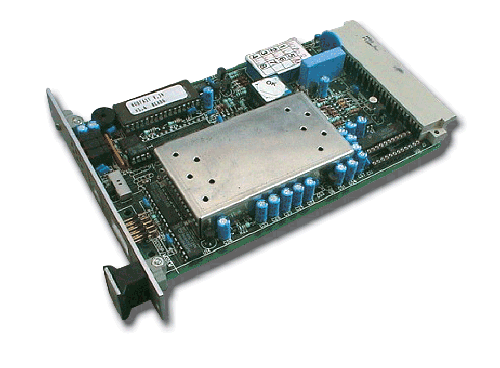

GSM/GPRS rackcard:

  • 19" eurocard format
  • Based on Sierra wireless GSM/GPRS module
  • Quad-band 850/900/1800/1900 MHz : worldwide operation
  • GSM/CDMA: GSM
  • Communication protocol: GPRS Class 10
  • Maximum power output: 2 W @ 900 MHz / 1 W @ 1800 MHz
  • Circuit-switched 14.4 Kbps data and Group 3 FAX
  • SMS support
  • Asynchronous data up to 115.200 bps
  • Flow control (RTS/CTS - XON/XOFF) and speed buffering
  • Automatic format and speed (300 to 115.200 bps) sensing
Digi T16 Portserver
  • Management HTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool
  • Protocols UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, PPP, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support, RADIUS, Reverse SSH
  • Software Supports Digi's Realport® COM port redirector
  • Security SSHv2, SSL/TLS
  • Status LEDs Link, Activity, Power, Status
  • Operating Systems AIX, HP-UX, Solaris, Linux®, Windows® 2000, Windows® XP, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows Server® 2003, Win-dows Server® 2008, Windows Server® 2012. Note: TCP/UDP socket services are operating system independent
  • (L x W x D) 5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm)
  • Weight 2.25 oz (64.00 g)
  • Other Full modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F console adapter included for optional serial configuration
  • Serial: Ports 1 RS-232 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD 2 RS-232 RJ-45; Up to 230 Kbps through-put; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD 4 RS-232 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
  • Ethernet: Ports 1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex
  • Power Input 9-30 VDC
  • Power Supply (included) 12 VDC power supply for 0° C to +60° C (32° F to +140° F) with locking barrel connector included
  • Power Consumption Typical: 4 W; Max: 6 W
  • Prodcut Surge Protection (ESD) 8 kV Air discharge and 4 kV Direct discharge, per EN61000-4-2
  • Operating Temperature 0° C to +60° C (32° F to 140° F)
  • Storage Temperature -40° C to +85° C (-40° F to +185° F)
  • Relative Humidity 5% to 95% (non-condensing)
  • Ethernet Isolation 1500 VAC min per IEEE802.3/ANSI X3.263
  • Serial Port Protection (ESD) 15 kV human body mode
  • Safety UL/CUL 60950, IEC 60950 & CB
  • Emissions/Immunity CE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, CISPR 22, VCCI V-3/99.05


A typical set up and application is the following: A terminal server solution (Bausch Datacom suggests Digi) offers a TCP/IP connection and SNMP managmement to the 19''Rack with maximal 10 GSM Proxima rackcards based on Sierra Wireless GSM modules.
