New! IMODGSM-E3 GSM/GPRS embedded I-Module next to PSTN socket modem range.

New! IMODGSM-E3 GSM/GPRS embedded I-Module next to PSTN socket  modem range.

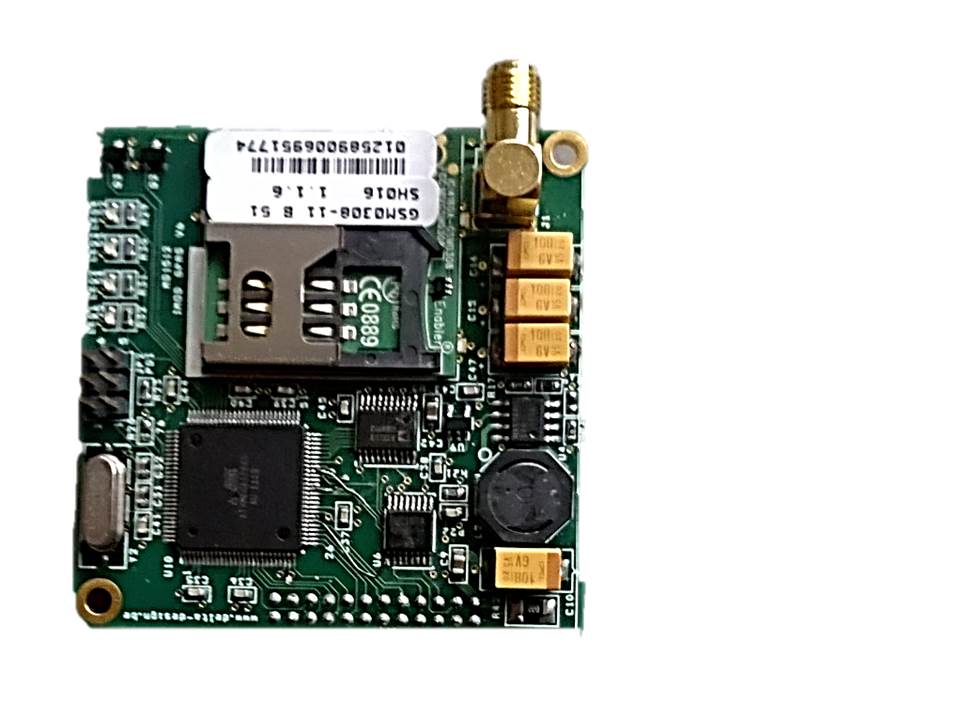

New! The IMODGSM-E3 is our latest embedded GSM/GPRS I-module - 56,4 x 56,4 mm -, ment for all kinds of remote M2M alarm monitoring and utility applications. The new IMODGSM is FCC (Parts 15, 22 & 24), CE, IC and RoHS Compliant and has GCF v3.27.0, PTCRB v3.12.0, AT&T, Rogers and other worldwide operator certifications.

GSM IMOD module

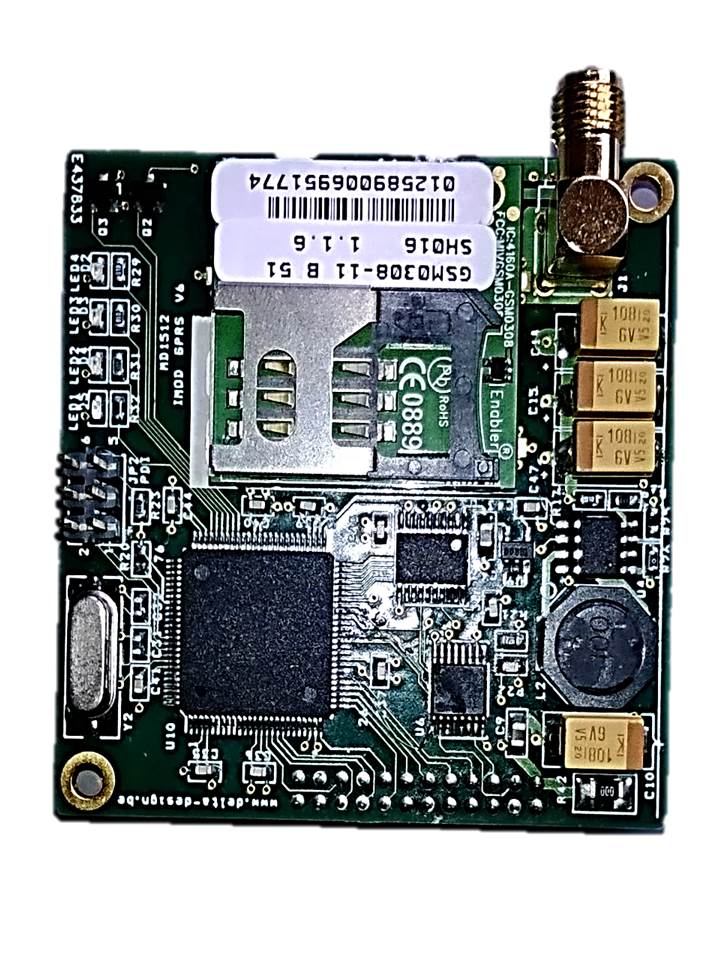

The IMODGSM-E3 is the first Bausch Datacom GSM GPRS embedded I-module - 56,4 x 56,4 mm -, ment for all kinds of remote M2M alarm monitoring and utility applications. Supporting FOTA (Firmware over the Air) as an option - the firmware is loaded onto the flash module - the IMODGSM-E3 integrates a quad band Enfora Enabler-IIIG-0308-11 cellular module, an AVR processor (with program and debug functionality) and a 3V3 serial TTL Interface. Tailor-made and project-specific software can be developed  for the customer. The module is FCC (Parts 15, 22 & 24), CE, IC and RoHS compliant and has GCF v3.27.0, PTCRB v3.12.0, AT&T, Rogers and other worldwide operator certifications.
(Please visit: http://www.bauschdatacom.be/group/GPRS/645/IMODGSM-E3).The IMODGSM-E3 is the first Bausch Datacom GSM module for embedded applications.



PSTN socket modem range

Bausch Datacom is also specialized in the design and development of PSTN and ISDN telecom modules for embedded applications. The company has a long experience designing modems and line interfaces for set top Boxes, cash registers, alarm systems, P.O.S, metering systems and many other applications. The modem designs are used world wide with approvals in many countries. Delta Design can offer services from the very first idea, schematics, PCB designs, approval, compliance testing and even coordination of external production if necessary.

The Silicon Labs based SMD24xx is a complete modem module range that meets global telephone line requirements. Available in a socket (64,5mm x 26,5mm) size footprint, the device is ideal for embedded modem applications due to its small board space, low power consumption and global compliance. The device is available in 5 different versions, ranging from V.92 down to V.22bis. The module allows you to reduce time to market by using a ready to use approved solution.
(Please visit: http://www.delta-design.be/products)

The Conexant Harley 2 based SM_H2_3V3 Socketmodem is a V.92 (56K), 3.3V socketmodem (64,5 x 26,5 mm) with voice listen-in option (full duplex speakerphone). This module is ideal for embedded medical, metering and alarm applications since it offers very low operating power requirements, a small board space, a worldwide compliance and a 3 kV dielectric withstanding voltage. Specifically for alarm applications it supports the SIA alarm protocol and Contact ID.
(Please visit: http://www.bauschdatacom.com/group/PSTN/628/SM_H2

The Conexant Harley 2 based SM_H2_3V3 V92 Socketmodem is a V.92 (56K) socketmodem (64,5 x 26,5 mm) with 3kV isolation, 3.3V power supply and full duplex speakerphone option.


Bausch Datacom has supplied large quantities of socket PSTN modems for cash register products, a.o. to large Italian companies such as Olivetti and DA Sistemi. More than 150.000 modems were already shipped to these customers. Olivetti of course is well known for its cash registers but also DA Sistemi for instance is a group of several companies operating together under the complete control of DA Sistemi S.p.A. The various companies produce equipment and applications using magnetic strip and microchip cards for electronic payment systems, fidelity schemes etc... Their EFT-POS terminals are especially popular and successful. Those terminals accept credit cards and ATM cards for POS payments. Major accounts of DA Sistemi include leading banks and bank consortia, public authorities and private companies. DA Sistemi already has a great international presence and is currently engaged in a policy of expansion within Europe regarding the distribution of products and services.

Bausch Datacom supplied large quantities of socket PSTN modems in the past for integration in cash register products, such as 150.000 PSTN modems for Italian companies DA Sistemi and Olivetti.
