The DinBox RTU has 16 digital inputs and each DI (1 to 16) has it?s own configuration with 3 possible options: Alarm, Information and Signalisation. Each of the 3 options has its specific parameters to set. In general the DinBox RTU can send a single DI message, a group DI message or a group AI message by SMS.

DinBox RTU with extended SMS application or Wireless IP-enabled



Bausch Datacom industrial product news: January 2010






* DinBox PSTN 485 modem - built inside standard Phoenix housing - updated with enhanced security features

* DinBox GSM/GPRSmodem - built inside standard Phoenix housing - application notes (see specs below)

If you want more information, please sent an email torik.verheyen@bausch.be...



  • Bausch DinBox GSM/GPRS modem
  • Dual band 900 and 1800 MHz GSM/GPRS modem
  • DIN rail mountable standard Phoenix housing : 22.5 x 75.0 x 107.5 mm
  • Integrated power supply 10-50 Vdc regulated
  • Long term watchdog (reset every 24 hours)
  • Serial V.24/RS-232 interface
  • Wavecom Q24PL processor inside
  • Terminal block with screw contacts to connect power supply
  • Magnetic Dual band antenna included (standard SMA connector)
  • Application 1 : DI change = SMS send   Read more...
  • Application 2 : DI change = SMS send round-robin  Read more...
  • Application 3 : DI change = SMS send to DinBox GSM and DO change  Read more...

  • Bausch DinBox PSTN 485 modem
  • 33.6 and 56 Kbps modem for analogue telephone network (PSTN)
  • DIN rail mountable standard Phoenix housing : 22.5 x 75.0 x 107.5 mm
  • Integrated power supply 10-50 Vdc regulated
  • Long term watchdog (power disconnect after 24 h)
  • Serial V.24/RS-232 interface
  • Additional 2/4-wire RS-485 interface (screw contacts)
  • Terminal block with screw contacts to connect power supply
  • Conexant (Rockwell) processor inside
  • 2-wire analogue Leased Line, Dumb mode, Asynchronous DTR-dialing
  • Selective Caller ID answer (1 to 20 preprogrammed telephone numbers)
  • Password Security and Dial Back to preprogrammed telephone number(s)



NEW : DinBOX RTU with extended SMS application

The DinBox RTU has 16 digital inputs and each DI (1 to 16) has it’s own configuration with 3 possible options: Alarm, Information and Signalisation. Each of the 3 options has its specific parameters to set. In general the DinBox RTU can send a single DI message, a group DI message or a group AI message by SMS. It also receives and handles programmed messages by SMS (for example to acknowledge receipt of a SMS or when a status report of the RTU is needed..). For more details, see manual below.

Manual DinBox RTU with SMS application
DinBox RTU productfiche

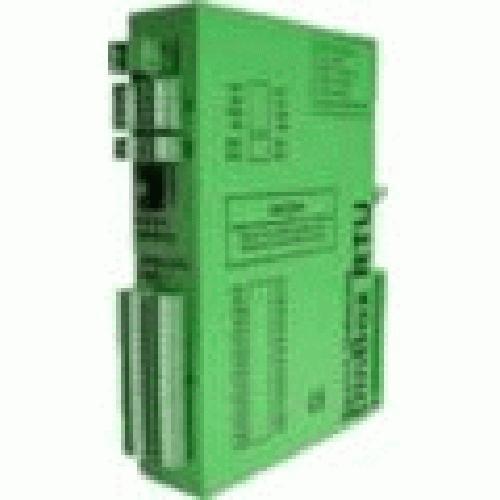

NEW  DinBox RTU: Wireless IP-enabled micro-RTU all-in-one





The DinBox RTU is a wireless IP enabled all-in-one single device. The product is built inside a single DINrail housing and has an embedded TCP/IP enabled GSM/GPRS modem as well as 4 AI, 16 DI, 2 DO, an integrated power-back-up and internal logging and data acquisition possibilities (time and event driven) with additional alarm management through SMS with acknowledgement. The DinBox RTU typically allows Wireless GPRS communications to IP enabled SCADA systems. Read more...











RTU built inside Phoenix DINrail housing, with real time clock, 4 isolated AI, 16DI , 2DO and integrated GPRS modem. Powered via 85-264 Vac/120-370 Vdc mains (with optional power backup via 4 x Maxwell PC10 SuperCaps or NiMH rechargeble battery pack and fast battery charger).

  • Micro-RTU in DINrail housing w. integrated power supply (input voltage range of 85~264 Vac / 120-370 Vdc), RTC and FRAM's.
  • Embedded TCP/IP enabled GSM and GPRS modem
  • Integrated I/O: 4 AI, 16 DI, 2 DO
  • Power back-up via integrated Supercaps (short time) or NiMH battery pack (long time)
  • Internal Data acquisition, handling and logging (time and event driven)
  • (Real time) alarm management through SMS with acknowledgement
  • Integrated ASCII protocol NMKD-3085 (ABB Scada over GPRS)
  • Integration of 60870-5-104 TCP/IP communication protocol: in preparation
