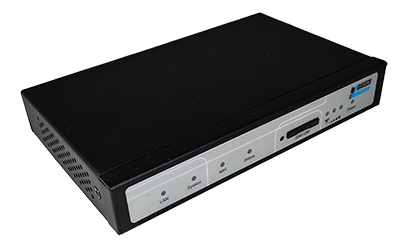

DinBox Router 3G

DinBox Router 3G

3G Router The DinBox Router 3G is a WCDMA/HSDPA/HSUPA/HSPA+ router / cellular terminal device providing data communication functionality through a public WCDMA/HSDPA/HSUPA/HSPA+ network. The router has an embedded high-powered industrial 32-bits CPU and a real time operating system and both a RS232 or RS485/RS422 serial communication port and Ethernet port, allowing the transparent connection of existing serial and Ethernet devices to a cellular network.The router can be used in M2M applications, including intelligent transport, industrial automation, telemetry, POS, utilities and others. It supports both VPN client and server (IPsec) and also local and remote firmware upgrades, along with import and export of configuration files. Other features are e.g. an embedded RTC, NTP and even a multiple DDNS provider.

Highlights

  • Features:
    GPRS/EDGE/3G router with VPN IPsec functionality
    Industrial Features: DINrail brace, AC and DC Power Supply possibilities
    Management System optional on demand
  • Applications:
    Routing and VPN IPsec tunneling

Specifications

  • Housing:
    Housing Iron, IP30 protected
    DINrail brace
    Dimensions 157x97x25 mm
    Weight 440g
  • Power supply:
    Standard Power DC 12V/1.5A
    Power range DC 5~35V
    Consumption <450mA (12V)
  • Environmental:
    Operating Temperature -35~+75ºC
    Storage Temperature -40~+85ºC
    Operating Humidity 95% (unfreezing)
  • Engine: Cellular Specifications:
    Industrial cellular module
    Standards and frequency bands: UMTS / WCDMA / HSDPA / HSUPA / HSPA+ in 850/1900/2100MHz, 850/900/1900/2100MHz (optional), GSM850/900/1800/1900MHz GPRS / EDGE CLASS 12
    Bandwidth: HSUPA:5.76Mbps (upload speed) / HSDPA:7.2Mbps (download speed) / UMTS:384Kbps (DL/UL) / HSPA+: 21Mbps (download speed)
    TX power: <24dBm  RX sensitivity: <109dBm
    Hardware System:
    CPU Industrial 32bits CPU
    FLASH 8MB (extendable to 64MB) SDRAM 64MB
    Indicators: "Power", "System", "Online", "Link/ACT", "Alarm", “Signal Strength”
    Standard 3-PIN power jack, reverse-voltage and overvoltage protection
  • Routing and Security:
    VPN client (PPTP, L2TP, OpenVPN, IPSEC and GRE (only for VPN version)
    VPN server (PPTP, L2TP, OpenVPN, IPSEC and GRE (only for VPN version)
    Local and remote firmware upgrade, import and export configuration file
    NTP, embedded RTC
    Multiple DDNS provider service
    MAC Address clone, PPPoE Server included
    Support multi online trigger ways, including SMS, ring and data.
    Support link disconnection when timeout.
    Support APN/VPDN
    Support DHCP server and client, firewall, NAT, DMZ host, URL block, QoS, speed statistics etc.
    Full protocol support such as TCP/IP, UDP ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.
    Schedule Reboot, schedule Online and Off line ...
  • Interfaces & Connectors:
    Ethernet: 1x 10/100 Mbps Ethernet port (RJ45), auto MDI/MDIX, 1.5KV
    Serial: 1x RS232 (or RS485/RS422) port, 15KV ESD protection / Data bits 5, 6 ,7, 8 / Stop bits 1, 1.5 (optional), 2  / Parity none, even, odd, (space, mark) (optional)
    Baud rate 2400 ~ 115200 bps
    SIM/UIM: Standard 3V / 1.8V user card interface, 15KV ESD protection Power
  • Antenna: Standard SMA female interface, 50 ohm
  • Reset: Restores the router to its original factory default settings
  • Contents of the package:
    DinBox 3G Router
    Cellular antenna(s) (Male SMA)
    Network cable
    Console cable
    Power adapter
  • Certification: CE
