DinBox LoRa Gateway

DinBox LoRa Gateway

LoRa/3G Gateway

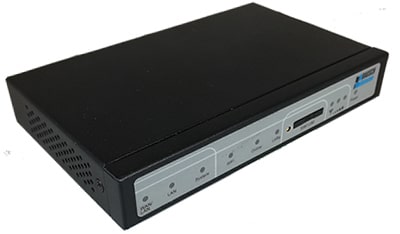

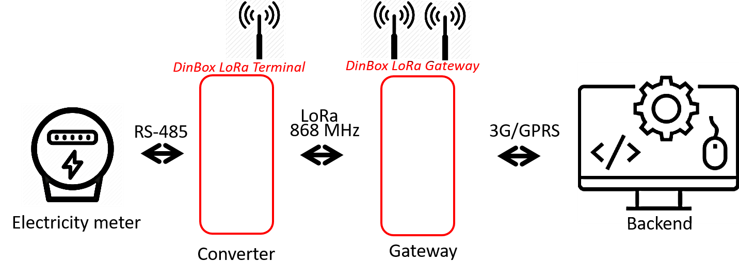

The DinBox LoRa Gateway is a wireless data gateway based on LoRa protocol. The gateway can be connected to LoRa terminals in various application modes, and send the data to (cloud) servers through GPRS/3G/4G or wired ethernet. The product uses a high-performance industrial-grade 32-bits CPU and wireless module, with an embedded real-time operating system. It provides 1 LAN, 1 WAN/LAN, 1 WIFI interface, supports WIFI wireless configuration, management and OTA update and supports DC input.

Highlights

Features:
Ethernet interface
RS232/RS485/RS422 interface
2.5G/3G/4G
VPN Ipsec
LoRa module

Applications:
Smart grid power line online monitoring
Smart parking solution
Soil temperature and humidity monitoring
Intelligent Agriculture
Wireless remote meter reading
Photovoltaic array monitoring

Specifications

  • Housing:
    Shell IP30
    Dimensions 157x97x25 mm
    Weight 440g
  • Power Supply:
    12V/0.5A
    Range: DC: 5~36V
  • Power Consumption:
    Stand By: 4G: 156?170mA@12V 3G: 162?201mA@12V 2G: 134?193mA@12V
    Communication 4G: 310?494mA@12V 3G: 294?412mA@12V 2G: 174?201mA@12V
  • Processor Engine:
    CPU: Industrial 32bits CPU
    FLASH: 16MB (Extend able to 64MB)
    DDR2: 128MB
  • WiFi Engine:
    Standard IEEE802.11b/g/n
    Band Wdith: IEEE802.11b/g: speed rate up to 54Mbps
    IEEE802.11n: speed rate up to 150Mbps
    Security: Support WEP/WPA/WPA2 encryption types
    Output Power: 20dBm(11n), 24dBm(11g), 26dBm(11b)
    Sensitivity: -72dBm@54Mbps
  • 3G Engine:
    Standard & Band: DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/1900
    /2100MHz tri-band, 850/900/1900/2100MHz quad-band (optional)
    Support GSM 850/900/1800/1900MHz quad-band
    Support GPRS/EDGE CLASS 12
    Band Width: DC-HSPA+: downlink rate 42Mbps, uplink rate 5.76Mbps
    HSPA+: downlink rate 21Mbps, uplink rate 5.76Mbps
    HSDPA: downlink rate 7.2Mbps, HSUPA: uplink rate 5.76Mbps
    UMTS: 384Kbps
    Output Power: < 24dBm
    Receive Sensitivity: < -109dBm
  • LoRa Engine:
    Bands: 433/470/780/868/915MHz
    Urban Communication Distance: 2km
    Output Power: <30dBm
    Receive Sensitivity: <-140dBm
    Speed Rate: 6 level adjustable (0.3, 0.6, 1.0, 1.8, 3.1, 5.5Kbps)
  • Interfaces & Connectors:
    WAN/LAN: 1*10/100 Mbps WAN/LAN
    LAN: 1*10/100 Mbps LAN
    Serial Port: 1*RS232(or RS485/RS422)
    Indicators: “WAN/LAN”, “LAN”, “System”, “WIFI”, “Online”, “Lora”, “Power”
    Antenna: Cellular: 1* standard SMA female antenna, 50 ohm, lighting protection (optional)
    LoRa: 1* standard SMA female antenna, 50 ohm, lighting protection (optional)
    Wifi: 1* standard SMA male antenna, 50 ohm, lighting protection (optional)
    SIM/UIM: 1.8/3.3V SIM/UIM
  • Environmental:
    Operating Temperature: -35~+75ºC (-31~+167ºF)
    Storage Temperature: -40~+85ºC (-40~+185ºF)
    Relative Humidity: 95% (non-condensing)
  • Certfication:
    CE
    FCC
