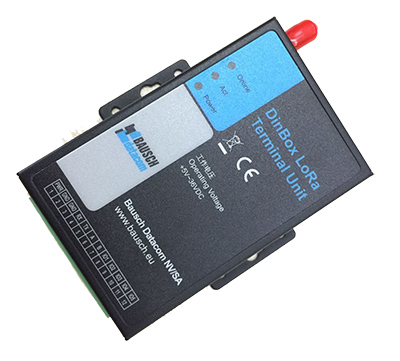

DinBox LoRa Terminal

DinBox LoRa Terminal

RS-485 / LoRa converter
The DinBox LoRa Terminal is a wireless data transmission terminal based on LoRa Spread Spectrum Communication technology. It can provide a wireless data transmission function by LoRaWAN network. The product uses a high-performance industrial-grade LoRa solution with embedded real-time operating system. It provides RS232 and RS485 (or RS422) interfaces, to establish data transparant functions. The terminal has a low-power design,the minimum power consumption is less than 5mA@12VDC.

Highlights

  • Features:
    LoRa Module
    Low-power design
    Metal casing, IP30 protection
    Suitable for most industrial control applications
    Wide range power input (DC 5~36V)
    3 AI, 2 DI/DO, 2 pulse counting
    RS232/RS485/RS422 interface (15KV ESD)

  • Applications:
    IoT M2M environments
    Smart Grid
    Intelligent transportation
    Smart Home, mobile POS terminals
    Industrial Automation, intelligent building…

Specifications

  • Housing:
    Metal casing, IP30
  • Dimensions: 91 x 58.5 x 22mm
  • Weight: 205g
  • Power Supply:
    12V/0.5A
    Range: DC: 5~36V
  • Power Consumption:
    TXD: 60.3?61.2mA@12V
    RXD: 13.2?13.4mA@12V
    Sleep: 3.1?3.2mA@12V
    TXD: 107.3?115.1mA@5V
    RXD: 26.1?26.2mA@5V
    Sleep: 7.3?7.4mA@5V
  • Processor engine:
    Industrial-grade 32-bit processor
    128 KB
    16 KB
  • LoRa Engine:
    Band: EU433, CN470-510, CN779-787, EU863-870, US902-928,
    AU915-928, AS923, KR920-923
    Urban Communication Distance: 1km (2km optional)
    Output Power: 20dBm (100mW) ( 30dBm (1W) optional)
    Speed Rate: 6 level adjustable (0.3, 0.6, 1.0, 1.8, 3.1, 5.5Kbps)
    Sensitivity: -140dBm
  • Interfaces & Connectors:
    Serial Port: 1x RS232 and 1x RS485 (RS422) interface (15KV ESD)Data bits: 8 bits / Stop bits: 1 or 2 bits / none, even parity, odd parity
    LED Indicators Power, Communication, LoRa
    Antenna: Standard SMA female antenna, impedance: 50 Ω
    Power: Terminal block interface with built-in phase-reversal and over-voltage protection
  • Environmental:
    Operating Temperature: 40~+85 ºC 40~+185?)
    Storage Temperature: 40~+125 ºC (-40~+257?)
    Relative Humidity: 95% (non-condensing)
  • Certification:
    CE
    FCC
