IMOD560

IMOD560

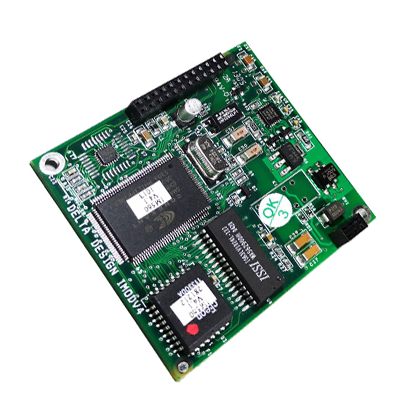

PSTN V.92 Modem Module
The development of PSTN I-Modules and other embedded modem applications was one
of the most important activities of Bausch Datacom and its engineering company Delta
Design and is still continued. The PSTN I-Modules that we design and produce are based,
amongst others, on Silicon Labs Technology and Conexant Technology. The Imod-Delta-IXXS I-modules are I-modules in different speeds (V34, 33K6 and V.92, 56K) that meet global telephone line requirements. Available in a 56,4 x 56,4 mm size footprint, the IMOD (V.92 version), based on Conexant technology, is ideal for embedded modem applications due to its small board space, low power consumption and global compliance. Lastly, the modem is a SIA alarm transmitter with listen-in possibility.

Highlights

  • PSTN V.92 I-Module
  • Small form factor
  • Embedded applications:
    Security systems
    Point-of-sale verification systems
    Set top boxes
    Industrial /medical monitoring systems
    Power meters
    Remote monitoring
    E-mail Terminals
    ATM Terminals

Specifications

  • Housing: I-Module
    Dimensions: 56,4 x 56,4 mm size footprint
  • Power Supply:
    3V3
  • Engine:
    V.92 modem
    Conexant SmartDAA 3 technology
    Command set Hayes, subset of V.250/V.253

    Fax modem send and receive rates up to 14.4 kbps
    Full-duplex speakerphone
  • Communication Protocols:
    ITU V.92, V.90, V.34+/V.32b/V.32/V.22b/V.22/V.23/V.21
    V.92 version includes Modem-on-Hold, Quick Connect, PCM Upstream,
    V.44/V.42bis and MNP5 data compression
    V.42 and MNP2-4 error correction
    FastPOS (V.29) and V.22 fast connect
  • Alarm Protocols:
    SIA alarm transmitter with listen-in possibility.
  • Functions:
    DTMF Support
    Line-in-use detection
    Digital Line Guard (programmable)
    Extension Pick-up detection
    Remote Hang-up detection
    Watchdog function
  • Interfaces & Connectors:
    Serial TTL DTE V.24/V.28 interface
  • Certification: CE - Worldwide support

Additional Info

The development of PSTN I-Modules and other embedded modem applications was one of the most important activities of Bausch Datacom and its engineering company Delta Design and is still continued.
The PSTN I-Modules that we design and produce are based, amongst others, on Silicon Labs Technology and Conexant Technology.
The Imod-Delta-IXXS I-modules are I-modules in different speeds (V34, 33K6 and V.92, 56K) that meet global telephone line requirements. Available in a 56,4 x 56,4 mm size footprint, the IMOD (V.92 version), based on Conexant technology, is ideal for embedded modem applications due to its small board space, low power consumption and global compliance.
Also important is that this modem is a SIA alarm transmitter with listen-in possibility.
