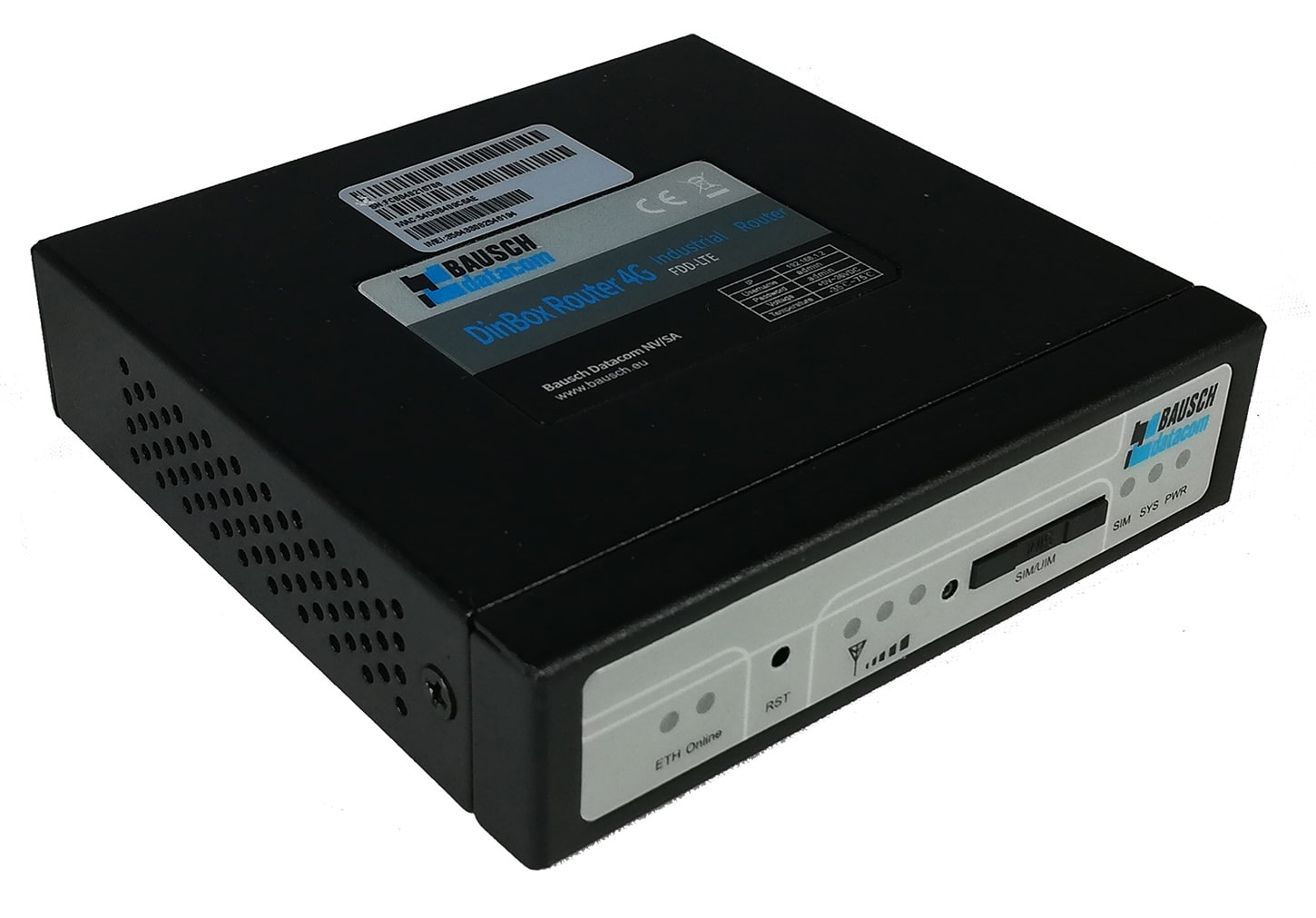

DinBox 4G Router: Cost-effective professional & Industrial LTE Cat. 1 router

DinBox 4G Router: Cost-effective professional & Industrial LTE Cat. 1 router
The DinBox 4G router is the standard device for all kind of Industrial routing applications. It offers both Ethernet and RS-485 interfacing and WAN LTE Cat. 1 GPRS communication. It is secured by VPN IPsec tunneling. Multiple Ethernet port & WiFI versions are also available on demand.

The DinBox Router 4G is a LTE Cat., GPRS/EDGE router/cellular terminal device providing data communication functionality. The router has an embedded high-powered industrial 32-bits CPU and a real time operating system and both a RS232 or RS485/RS422 serial communication port and Ethernet port, allowing the transparent connection of existing serial and Ethernet devices to a cellular network. The router can be used in M2M applications, including intelligent transport, industrial automation, telemetry, POS, utilities and others. The product supports VPN client and server (IPsec) and also local and remote firmware upgrades, along with import and export of configuration files. Other features are e.g. an embedded RTC, NTP and even a multiple DDNS provider.

The DinBox 4G Router comes with the following industrial features: Antenna, DINrail brace, AC & DC Power Supply (AC adapter enclosed), network and console cable. The router is housed in a metal casing IP 30 and has pocket sized dimensions 100x97x25 mm. The router supports several routing and security protocols:

  • multiple WAN access methods, including static IP, DHCP, L2TP, PPTP,PPPOE,2.5G/3G/4G
  • double link backup between Cellular and WAN(PPPOE, ADSL) (optional)
  • VPN client(PPTP, L2TP, IPSEC and GRE)
    (only for VPN version)
  • VPN server(PPTP, L2TP, IPSEC and GRE)(only for VPN version)
  • multiple DDNS provider service
  • local and remote firmware upgrade,import and export configure file
  • NTP, RTC embedded
  • VLAN, MAC Address clone, PPPOE Server
  • multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout
  • APN/VPDN
  • DHCP server and client, firewall, NAT, DMZ host, URL block, QOS, traffic statistics, real time link speed statistics etc
  • Full protocol support , such as TCP/IP, UDP, ICMP, SMTP(optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc
