DinBox GSM SL

DinBox GSM SL

GSM GPRS Modem

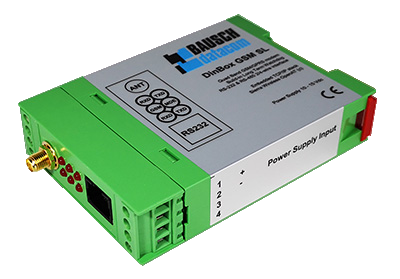

The DinBox GPRS SL modem is a serial V.24 RS-232/RS485 modem in a DINrail housing. The modem is DC powered, CSD GSM data, GPRS IP socket server & client modes are possible. The modem is an ideal solution for RS-232/485 interfacing to PLC, metering devices, power quality measurement equipment and others.
Bausch Datacom specializes in integrating applications, protocols and TCP/IP protocol stack in its modems. At the heart of the DinBox GPRS SL modem, the SL6087 Sierra GPRS Wireless module supports a powerful software development environment - OpenAT -, which allows embedded ANSI C applications to be executed directly on the Wireless CPU. This means that Bausch Datacom can integrate tailor made applications or communication protocols on the customers demand. Basically, the modem firmware allows the modem to be connected by RS-232 and/or RS-485 (2/4 wire) to 2 or more non-IP enabled (electricity) meters and to communicate by IP number and port number using GPRS. That way, transparent communication with the host system can be maintained.

Highlights

  • DINrail GSM GPRS modem for meter reading and industrial applications
  • DC Power Supply
  • Small form factor
  • 'TCP/IP Socket Server to Serial' application optional

Specifications

  • Housing: DINrail GSM GPRS modem
  • Power Supply: DC Power Supply
    Input voltage range : 10 – 30 Vdc regulated
    Typical power consumption : 75 mA @ 12Vdc – idle, registered onto the network 400 mA @ 12Vdc – maximum at peak TX power
  • Engine: Built-in Sierra Wireless SL6087 800/900/1800/1900 MHz GSM/GPRS module / CPU: 32 bit, 104 MHZ, ARM9, running Open AT®, TCP/IP stack – ‘Class B’
    Magnetical dual band SMA antenna included
    Integrated 3V SIM card reader
    Communication protocols: 2G GPRS Class 10 / CSD / SMS / TCP IP
    GSM data: asynchronous transparent mode
    Flow control (RTS/CTS – XON/XOFF) and speed buffering
    Automatic format and speed sensing (300 to 115.200 bps)
    AT command set support
  • Interfaces:
    DTE Interfaces:
    Complete RS-232 interface, galvanically separated, connected to UART1 of the GPRS module. RJ-45 (8x8) connector (DCD, RxD, TxD, DTR, GND, RI, RTS and CTS)
    RS-485 interface, configurable in 2- or 4wire by jumper settings, galvanically separated, connected to UART2 of the GPRS module.
  • Connectors:
    Mains and RS-485 interface : 4-pin header (pitch : 5.08 mm / Inom : 12 A / Unom : 250 V) and 4-pin connector terminal block with screw contacts (pitch 5.08 mm / Inom : 12 A / Unom : 250 V / maximum wiring section: 2.5 mm2 RS-232 : female RJ-45 connector
    50 Ohm AMP SMA antenna connector
  • Reset: Long term configurable watchdog (1-68 h)
  • Environmental:
    - 20°C / + 85°C / 10% - 75% (non condensing)
  • Certification: CE

Additional Info

Bausch Datacom specializes in integrating applications, protocols and TCP/IP protocol stack in its modems. At the heart of the DinBox GPRS SL modem, the SL6087 Sierra GPRS Wireless module supports a powerful software development environment - Open AT -, which allows embedded ANSI C applications to be executed directly on the Wireless CPU. This means that Bausch Datacom can integrate tailor made applications or communication protocols on the customer's demand, a very powerful tool! Protocols such as IEC 60870-5-104, DLMS COSEM, Modbus or others can thus be implemented in the modem.
Basically the modem firmware allows the modem to be connected by RS-232 and/or RS-485 to 2 or more non-IP enabled (electricity) meters and to communicate however by IP number and port number using GPRS. In this way a transparent communication with the host system can be maintained!
