DinBox Router Ethernet

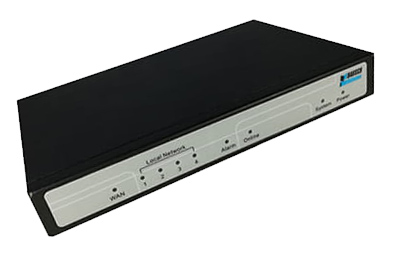

The DinBox Router Ethernet is an industrial routing device with 1 WAN & 4 LAN Ethernet ports (RJ-45). It is equipped with VPN IPsec server and client features.


  • Features:
    Ethernet Router with 4 LAN & 1 WAN Ethernet port
    VPN IPsec
    AC & DC power option
  • Applications:
    Meter reading
    Vending Machines
    RTU Communication
    ATM Systems


  • Housing Iron, IP30 protected
    DINrail brace
    Dimensions 207x135x28 mm
    Weight 750g
  • Power Supply:
    Standard Power DC 12V/1.5A
    Power range DC 5~36V
    Consumption Communication:
    Working mode: 170-200mA@12Vdc
    Standby: 140-155mA@12Vdc
  • Environmental:
    Operating Temperature: -35~+75ºC(-31~+167?)
    Storage Temperature: -40~+85ºC (-40~+185?)
    Operating Humidity 95% ( unfreezing)
  • Engine:
    CPU Industrial 32bits CPU
    FLASH 16MB(Extendable to 64MB)
    DDR2 128MB
  • Security:
    Support VPN client (PPTP, L2TP, IPSEC and GRE)
    (only for VPN version)
    Support VPN serve r(PPTP, L2TP, IPSEC and GRE)
    (only for VPN version)
    Support multiple DDNS provider service
    Support local and remote firmware upgrade,import and export configure file
    Support NTP, RTC embedded
    Support VLAN, MAC Address clone, PPPOE Server
    Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout
    Support APN/VPDN
    Support DHCP server and client, firewall, NAT, DMZ host , URL block, QOS, traffic statistics, real time link speed statistics etc
    Full protocol support , such as TCP/IP, UDP, ICMP, SMTP(optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc
    Schedule Online and Offline
  • Interfaces & Connectors:
    Ethernet 5 x 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
    Supports several work modes
    Convenient configuration and maintenance
    interface?WEB or CLI?
    Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection
    Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, (space, mark)(optional)
    Baud rate: 2400~115200 bps
    Indicators: PWR, SYS, Online, Alarm, Local Network, WAN, WiFi.
    Antenna WiFi: 1 standard SMA male, 50 Ohm, lightning protection
    Power: Standard 3-PIN power jack, reverse-voltage and overvoltage protection
    Reset: Restores the router to its original factory default settings
  • Contents of the Package:
    DinBox Ethernet Router
    WiFi antenna (Male SMA)
    Network cable
    Console cable
    Power adapapter
    DINrail brace
    RS-485 cable
    dc cable (12V)
  • CE certification
