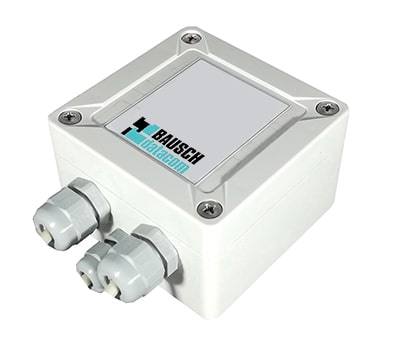

LTE Cat.M/NB IoT/SDI12 Logger The Delta Logger DL2 is a 2nd generation logging device with 2 analog inputs, one SDI12 and one (pulse) counter interface. The device is battery powered and functions as a stand-alone data logger, collecting data from sensor input and transmitting the data through LTE Cat M1/Cat NB1 / GPRS at programmable intervals.
Highlights
- Features:
Measurement logger/Gateway
LTE Cat.NB1 / Cat.NB2 / GPRS (not recommended)
Battery powered
2 analog inputs / SDI12 / Pulse Counting
Nano card holder or eSIM
Debug kit - Applications:
SDI 12 sensor & measurement logging & transmitting
Pulse Counting logging & transmitting
Analog measurement logging & transmitting
Specifications
- Basic variants of the Delta LTE SDI12 Logger:
Delta_DL2_BG95M3_CS
Delta_DL2_DEBUG_KIT
Spelsberg TG PC 88-6-O (Housing)
Spelsberg TG-PC-1608-9-O (Housing: 76 x 74.5 mm)
SLC1550 (Supercap) - housing: IP66-67
- Dimensions: 72X72 mm with cutouts and holes to fit Spelberg TG PC 88-6-0
- Power Supply:
3.6 Vdc battery
Onboard Supercapacitor (Optional) - Environmental:
Operating Temperature: -10°C + 50°C - Interfaces & Connectors:
2x Analog interface: 16 bit ADC/Input range:-0,2 .. 5Vdc/Input Impedance > 2,5 mOhm
SDI 12 sensor interface: 12V - 100 mA - Max. 4 devices - 20 readings per device
Micro USB 2 port for configuration and programming
SMA antenna connector
eSIM or traditional nano card - Communication:
LTE Cat.NBIoT/Cat.M/GPRS (not recommmended)
Quad band GPRS - Processor:
Low power microcontroller sleep mode: < 11uA
Dual bank Program flash for firmware upgrades 256KX2
8Mbyte Data Flash
Real Time Clock 3ppm
Remote configurable and programmable - Certifcation CE
-
folderDatasheet
- file_download DeltaLogger_DL2__BG95M3_CS.pdf
-
folderPresentations
- file_download DATALOGGER_DL2.pptx
-
foldergeneral
-
foldermanuals
- file_download dl_command_manual_v2.0.pdf
- file_download dl_hardware_manual_v1.0.pdf
